Tutorial

Abstract

A solid-solid phase transition establishes an atom-to-atom correspondence between the initial and final crystal structures \(\mathcal A\) and \(\mathcal B\). Such correspondence is called a crystal-structure match (CSM). A CSM can be described by a pair of POSCAR files, which specifies how the lattice deforms from \(\mathcal A\) to \(\mathcal B\) and the correspondence between atoms in a supercell of \(\mathcal A\) and those in \(\mathcal B\).

The main functions of crystmatch are as follows:

• Enumeration:

  • Provide a complete list of representative CSMs between \(\mathcal A\) and \(\mathcal B\), with user-specified upper bounds on the multiplicity and strain.
  • Provide a complete list of CSMs with user-specified upper bounds on the multiplicity, strain, and shuffle distance.

• Analysis:

  • Read a CSM from a pair of POSCAR files, and save CSMs in the same format.
  • Calculate the root-mean-squared strain (RMSS), estimated strain energy density, and shuffle distance (RMSD) for each CSM.
  • Benchmark each CSM by its deviation angle from a given orientation relationship.
  • Visualize the distribution of strain, shuffle distance, and multiplicity of CSMs in a 2D scatter plot.
  • Visualize a CSM in a 3D interactive plot.

Congruent CSMs (those differ only by a space-group transformation) are identified and excluded from the enumeration using the Spglib library by Atsushi Togo et al.

Installation

Make sure you have Python 3.9 or later installed. You can check it by running:

python3 --version

To install the latest version of crystmatch, run:

pip3 install --upgrade numpy scipy spglib numba matplotlib
pip3 install --upgrade crystmatch

Check whether crystmatch is successfully installed (the first run may take a few minutes to compile the required modules):

crystmatch --version

The current version of crystmatch is 2.0.5.

Tip

If you prefer using conda, you can install crystmatch by running:

conda install conda-forge::crystmatch

How to cite

If you use crystmatch in your research, please cite one of the following paper:

• Crystal-Structure Matches in Solid-Solid Phase Transitions

  Physical Review Letters 132, 086101 (2024)

  @article{wang2024crystal,
      title={Crystal-Structure Matches in Solid-Solid Phase Transitions},
      author={Wang, Fang-Cheng and Ye, Qi-Jun and Zhu, Yu-Cheng and Li, Xin-Zheng},
      journal={Phys. Rev. Lett.},
      volume={132},
      number={8},
      pages={086101},
      year={2024},
      publisher={APS},
      doi={10.1103/PhysRevLett.132.086101}
  }


• Classification and Enumeration of Solid-Solid Phase Transition Mechanisms

  Under review (2025)

  @article{wang2025classification,
      title={Classification and Enumeration of Solid-Solid Phase Transition Mechanisms},
      author={Wang, Fang-Cheng and Ye, Qi-Jun and Zhu, Yu-Cheng and Li, Xin-Zheng},
      journal={arXiv preprint arXiv:2506.05105},
      year={2025},
      doi={10.48550/arXiv.2506.05105}
  }


Usage

To run crystmatch, one of the following modes must be selected:

1. --enumerate

   Enumerate a list of CSMs, save them to a CSMLIST.npz file, and perform preliminary analysis. The initial and final crystal structures must be specified in two separate POSCAR files.

2. --read

   Read CSMs from a CSMLIST.npz file. You can export specific CSMs to POSCARs or XDATCARs, perform orientation-relationship analysis, and visualize them interactively.

3. --direct

   Directly determine a single CSM by two POSCAR files (must have the same number of atoms), perform detailed CSM analysis, and interpolate between the initial and final structures.

We strongly recommend starting with the examples provided below, and then see all available options. To see the help message, run:

crystmatch --help

Examples

• Enumerating representative CSMs
• Enumerating all CSMs
• Visualizing CSMs in 3D interactive plots
• Exporting CSMs as POSCAR or XDATCAR files
• Interpolating between two POSCAR files (nebmake)
• Enumerating CSMs within given supercells
• Orientation-relationship analysis
• Computing estimated strain energy density

Enumerating representative CSMs

To enumerate a list of representative CSMs (each representing a unique deformation) between two crystal structures given by POSCAR files Graphite and Diamond, with upper bounds MAX_MU = 2 for multiplicity and MAX_STRAIN = 0.4 for RMSS, run:

crystmatch --enumerate Graphite Diamond 2 0.4

Caveat

We recommend you to try MAX_MU = 2 and MAX_STRAIN = 0.4 first, and then gradually adjust these upper bounds, usually by increasing MAX_MU and decreasing MAX_STRAIN, to obtain desired results. Otherwise, the enumeration may take a very long time, or find no CSMs at all.

Suggestion

If you are using a job scheduling system such as SLURM on a remote server, you can redirect the output of crystmatch to a log file and monitor the progress in real time using:

crystmatch --enumerate Graphite Diamond 2 0.4 > log

The following files will be created in the current directory:

./
├── CSMLIST-m2s0.4.npz       # stores the enumerated CSMs and metadata
├── SUMMARY-m2s0.4.csv       # lists the multiplicity, RMSS, and RMSD
└── SCATTER-m2s0.4.pdf       # shows the RMSD-RMSS distribution of the CSMs

Here, CSMLIST-m2s0.4.npz contains all information of the enumerated CSMs and SLMs, but is not intended to be human-readable. SUMMARY-m2s0.4.csv look like this:

# ./SUMMARY-m2s0.4.csv

# csm_id,  slm_id,      mu,  period,  rmss/%,  rmsd/Å
       0,       0,       1,       4,   21.28,  0.4788
       1,       1,       1,       4,   26.20,  0.6833
       2,       2,       1,       4,   30.47,  0.4884
       3,       3,       1,       4,   36.85,  0.7826
       4,       4,       1,       4,   37.89,  0.5036
       5,       5,       1,       4,   39.79,  0.7856
       6,       6,       2,       8,   14.34,  0.9107
       7,       7,       2,       8,   19.50,  0.8152

SCATTER-m2s0.4.pdf visualizes the RMSD-RMSS-multiplicity distribution of the CSMs.

Enumerating all CSMs

To enumerate all CSMs (representative and nonrepresentative) between two crystal structures given by POSCAR files Graphite and Diamond, with upper bounds MAX_MU = 2 for multiplicity, MAX_STRAIN = 0.4 for RMSS, and MAX_D = 1.8 for RMSD, run:

crystmatch --enumerate Graphite Diamond 2 0.4 --all 1.8

The following files will be created in the current directory:

./
├── CSMLIST-m2s0.4d1.8.npz     # stores the enumerated CSMs and metadata
├── SUMMARY-m2s0.4d1.8.csv     # lists the multiplicity, RMSS, and RMSD
└── SCATTER-m2s0.4d1.8.pdf     # shows the RMSD-RMSS distribution of the CSMs

Caveat

Using --all MAX_D with large MAX_MU may result in a very large number of CSMs. We recommend you to try MAX_D = 1.2 first, and then gradually increase it to obtain desired results.

If you wish to apply weighting to atomic species when calculating RMSD, prepare a CSMCAR file and use the --extra option. See CSMCAR for details.

Visualizing CSMs in 3D interactive plots

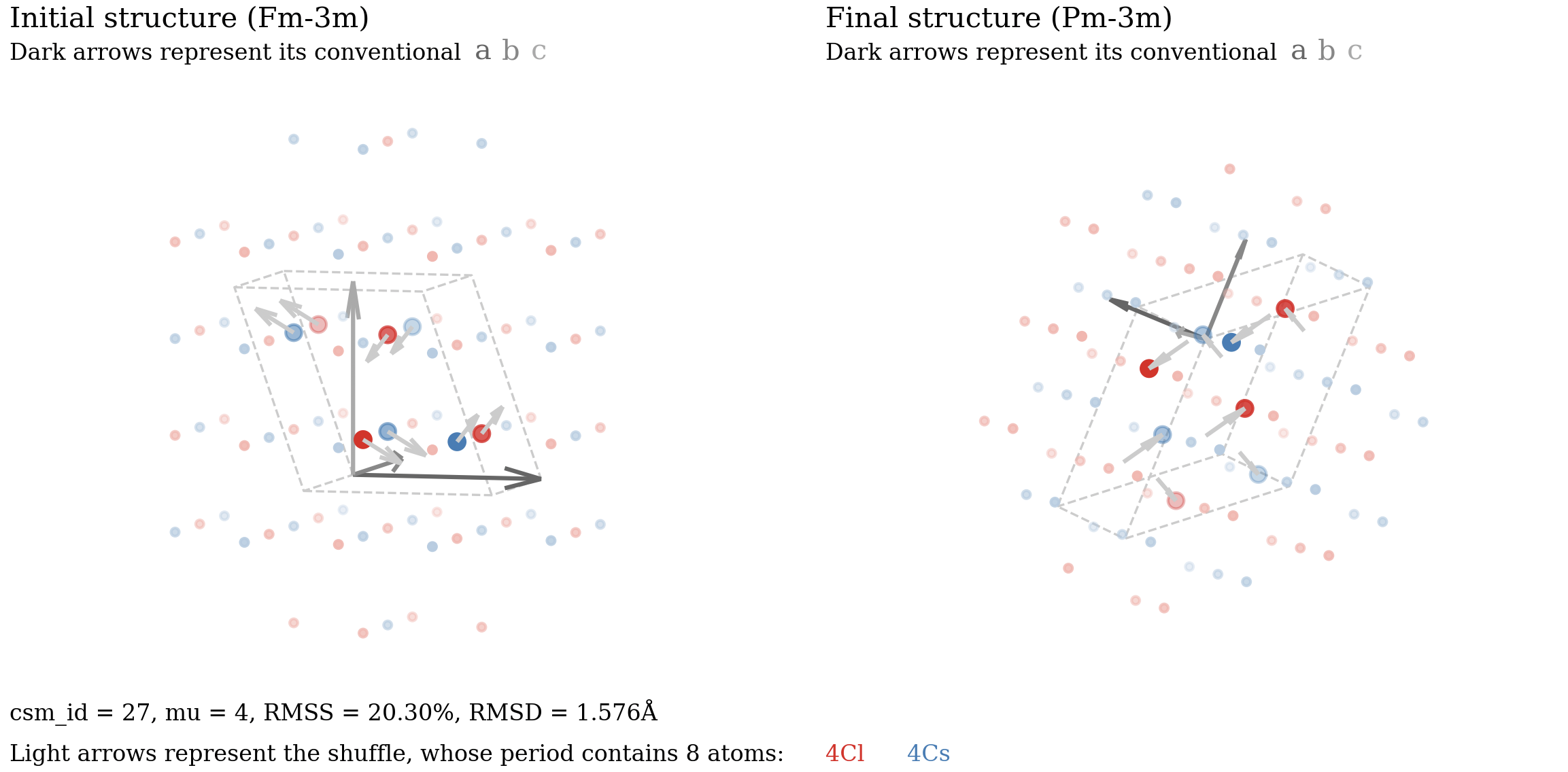

If you are using crystmatch in a local terminal, you can visualize the CSMs in a 3D interactive plot by adding the --interact option, as shown below. You can rotate and zoom the plot using your mouse or touchpad.

However, using --interact in --enumerate mode might be unwise, as you would have to visually inspect numerous CSMs one by one. The recommended workflow is:

1. Perform enumeration (using --all MAX_D or not), generating SCATTER.pdf, SUMMARY.csv, and CSMLIST.npz.
2. See SCATTER.pdf and roughly note the RMSS and RMSD values of CSMs of interest.
3. Identify the corresponding csm_id values for these CSMs in SUMMARY.csv, e.g., 1, 14, 514.

4. Read these CSMs from CSMLIST.npz using --read CSMLIST [IND1 IND2 ...], e.g., run:

   crystmatch --read CSMLIST.npz 1 14 514 --interact


Suggestion

You can enumerate CSMs on a remote server or WSL, and then download the CSMLIST.npz file to your local machine so that the CSMs can be visualized interactively using --interact.

Exporting CSMs as POSCAR or XDATCAR files

To export CSMs with csm_id values 7 and 10 from CSMLIST.npz as POSCAR files, run:

crystmatch --read CSMLIST.npz 7 10 --poscar

Two folders will be created in ./EXPORT-read/, each containing a pair of POSCAR files representing the CSM:

./EXPORT-read/
├── CSM_7/
│   ├── POSCAR_I
│   └── POSCAR_F
└── CSM_10/
    ├── POSCAR_I
    └── POSCAR_F

You can also export CSMs as XDATCAR files using the --xdatcar option. Both --poscar and --xdatcar are also available in --enumerate and --direct modes.

Interpolating between two POSCAR files (nebmake)

To interpolate between POSCAR_I and POSCAR_F, creating 3 new structures, run:

crystmatch --direct POSCAR_I POSCAR_F --nebmake 3

Important

When producing POSCAR files, some softwares (e.g. VASP) may add integers to the fractional coordinates to make them in \([0,1)\). In such case, the CSM determined by POSCAR_I and POSCAR_F can be irrational. This is much like how 0.9 -> 1.1 is inequivalent to 0.9 -> 0.1. To avoid this, add --restore to the above command:

crystmatch -D POSCAR_I POSCAR_F -n 3 --restore

Similar to nebmake.pl provided by VTST scripts, the following files will be created in the current directory:

./
├── 00/
│   └── POSCAR
├── 01/
│   └── POSCAR
├── 02/
│   └── POSCAR
├── 03/
│   └── POSCAR
└── 04/
    └── POSCAR

They can be directly used for subsequent SSNEB calculations.

Important

nebmake.pl provided by VTST scripts does not preserve the CSM between POSCAR_I and POSCAR_F. Specifically, it will first reduce each fractional coordinate to [0,1) and then interpolate the reduced coordinates. This may lead to unexpected CSMs and thus incorrect transition paths as well as their energy barriers. We always recommend interpolating structures by:

crystmatch -D POSCAR_I POSCAR_F -n IMAGES

Enumerating CSMs within given supercells

To enumerate all CSMs with identical initial and final supercells as POSCAR_I and POSCAR_F, but different atomic correspondences, run:

crystmatch --direct POSCAR_I POSCAR_F --all MAX_D

Here, MAX_D should be set to a smaller value if the supercells contain many atoms.

Orientation-relationship analysis

In --enumerate, --read, and even --direct modes, you can perform orientation-relationship analysis by using --orientation ASSUM and --extra CSMCAR. See CSMCAR for details.

Computing estimated strain energy density

If you want to use the estimated strain energy density, rather than the RMSS, to quantify the strain, you should provide the elastic tensors of the initial and final structures in the CSMCAR file.
